HORIZONTAL HIGH-SPEED ENAMELING MACHINE SERIES

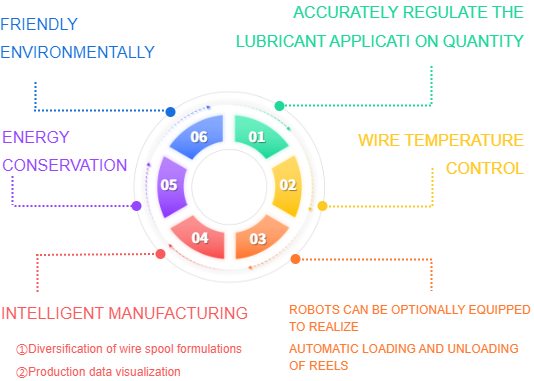

The MD-type horizontal high-speed wire enameling machine boasts prominent advantages of intelligent convenience，environmental friendliness and cleanliness，energy conservation and consumption reduction，as well as high efficiency and stability.
The original low-energy-consumption and environmentally friendly oven device significantly improves catalytic combustion efficiency and remarkably reduces energy consumption levels. The advanced waste gas treatment device can effectively reduce carbon emissions，providing strong support for enterprises' green and low-carbon production. It not only safeguards theecological environment but also contributes important strength to global sustainable development.
MD5/4-4/24A
MD5/4-4/24B
MD5/4-4/24C
MD5/4-4/24F
MD5/4-4/24H
Technical Parameters
MD5/4-4/24A
Wire Range
Ф0.30 - Ф0.80mm
Applicable Products
Cu/AI
Maximum Wire In Of Inline Drawing
Ф2.0mm
Maximum Drawing Passes
15，Elongation（No.1 - 14：1.25，No.15：1.22）
Maximum Production speed
600m/min
Wind-Up Bobbin
PT25-PT270
Retracting Mode
Auto reel alternation
Production and Power Consumption Sheet
WIRE RANGE
（mm） |
DIAMETER VELOCITY
（PEI） |
WIRE SPEED
（m/min） |
PRODUCTIVITY
（kg/24h） |
POWER CONSUMPTION
（kwh/kg） |
| 0.30 |
160 |
533 |
1996 |
0.65 |
| 0.50 |
160 |
320 |
3300 |
0.55 |
| 0.80 |
160 |
200 |
5300 |
0.50
|
Technical Parameters
MD5/4-4/24B
Wire Range
Ф0.20 - Ф0.50mm
Maximum Wire In Of Inline Drawing
Ф1.60mm
Maximum Drawing Passes
15，Elongation ( No.1-14：1.25，No.15：1.22 )
Maximum Production Speed
750m/min
Wind-Up Bobbin
PT25-PT270
Retracting Mode
Auto reel alternation
Production and Power Consumption Sheet
WIRE RANGE
（mm） |
DIAMETER VELOCITY
（PEI） |
WIRE SPEED
（m/min） |
PRODUCTIVITY
（kg/24h） |
POWER CONSUMPTION
（kwh/kg） |
| 0.20 |
140 |
700 |
1160 |
0.95 |
| 0.35 |
160 |
457 |
2400 |
0.65 |
| 0.50 |
160 |
320 |
3300 |
0.55 |
Technical Parameters
MD5/4-4/24C
Wire Range
Ф0.10 - Ф0.25mm
Maximum Wire In Of Inline Drawing
Ф0.50mm
Maximum Drawing Passes
15，Elongation ( No.1-14：1.25，No.15：1.10 )
Maximum Production Speed
1000m/min
Retracting Mode
Auto reel alternation
Production and Power Consumption Sheet
WIRE RANGE
（mm） |
DIAMETER VELOCITY
（PEI） |
WIRE SPEED
（m/min） |
PRODUCTIVITY
（kg/24h） |
POWER CONSUMPTION
（kwh/kg） |
| 0.10 |
100 |
1000 |
400 |
2.50 |
| 0.25 |
150 |
600 |
1500 |
0.80
|
Technical Parameters
MD5/4-4/24F
Wire Range
Ф0.50 - Ф1.20mm
Applicable Products
Cu/Al
Maximum Wire In Of Inline Drawing
Ф2.60mm
Maximum Drawing Passes
15，Elongation ( No.1-14：1.25，No.15：1.21 )
Maximum Production Speed
360m/min
Wind-Up Bobbin
PT25-PT270
Retracting Mode
Auto reel alternation
Production and Power Consumption Sheet
WIRE RANGE
（mm） |
DIAMETER VELOCITY
（PEI） |
WIRE SPEED
（m/min） |
PRODUCTIVITY
（kg/24h） |
POWER CONSUMPTION
（kwh/kg） |
| 0.50 |
160 |
320 |
3300 |
0.55 |
| 0.80 |
160 |
200 |
5300 |
0.50 |
| 1.20 |
160 |
116 |
7000 |
0.50
|
Technical Parameters
MD5/4-4/24H
Wire Range
Ф0.80 - Ф1.6mm， Ф1.00 - Ф2.00mm
Applicable Products
Cu/Al
Maximum Wire In Of Inline Drawing
Ф2.60mm
Maximum Drawing Passes
15, Elongation (No.1-14：1.25，No.15：1.21)
Maximum Production Speed
160m/min
Wind-Up Bobbin
PT25-PT270
Retracting Mode
Auto reel alternation
Production and Power Consumption Sheet
WIRE RANGE
（mm） |
DIAMETER VELOCITY
（PEI） |
WIRE SPEED
（m/min） |
PRODUCTIVITY
（kg/24h） |
POWER CONSUMPTION
（kwh/kg） |
| 1.00 |
150 |
150 |
6000 |
0.50 |
| 1.20 |
150 |
125 |
7300 |
0.50 |
| 1.60 |
120 |
75 |
8000 |
0.50
|
